Block 2 -Using NOTUNG for tree reconciliation

Overview

Teaching: 0.0 min
Exercises: 30 min

Questions

• Can we better understand tree reconciliation by doing it also using a program

Objectives

• Practice using NOTUNG

• Practice intepreting NOTUNG output

As explained in the lectures methods exist to do tree reconciliation automatically. One of the most intuitive ones is NOTUNG, which is installed on cocalc.

The gene and species tree files located for this exercises are present in ~/data_bb3bcg20/Block2/COOI/. Copy them (all the files containing .nwk) to your working folder.

In your folder of COOI, you should see a file containing a newick version of the RasGEF gene tree above: RasGefGeneTree.nwk. Look at it with more or cat (e.g.. on the command line type “more RasGefGeneTree.nwk”). Can you read this tree? What do the numbers after the “:” symbols represent?

Exercise: Can you read this tree? What do the numbers after the “:” symbols represent?

Solution

The tree is too big too easily read (for me)
Numbers after : are branch lengths

We are now going use the program NOTUNG. Besides NOTUNG’s use as a tool that can allow for noisiness in gene trees by taking a bootstrap threshold, it can also deal with noisiness by using an unresolved species tree (which NOTUNG refers to as non-binary). We have also provided the unresolved species tree for the species in our gene tree in: speciestree_rasgef_unresolved.nwk. Also look into this file (with more or cat or less.

This is very simple tree.

Exercise: Why does this tree not contain the : symbol? Can you recognize the unresolved nodes in this simple text file?

Solution

It is just the topology, that is all you need for this type of reconciliation; nice timed species trees do also exist though.

The unresolved nodes can be recognized as (a,b,c)

Get the following to run: java -jar ~/data_bb3bcg20/bin/Notung-2.9.1.5.jar RasGefGeneTree.nwk -s speciestree_rasgef_unresolved.nwk --reconcile --events NOTUNG has produced a bunch of output. Inspect the files, RasGefGeneTree.nwk.reconciled.events.txt and RasGefGeneTree.nwk.reconciled.

Exercise: What type of information do these files seem to contain?

Solution

The .events.txt file contains all the dups and losses as a table The .reconciled tree contains the tree from previous but with duplications and losses.

A tree is easier to look at I think. So we want to visualize the output on a tree. This is unfortunately not completely trivial, so we provide a cookbook to visualize the reconciled tree.

In a browser go to the website iToL at https://itol.embl.de/

Upload your reconciled RasGEF gene tree file to iToL (afeter copying the RasGefGeneTree.nwk.reconciled to your local machine) either as file or by pasting the text into box.

Ok. Now we need to do some things to make all the reconciled stuff human readable. First select in the panel to the upper right under basic -> mode options -> branchlengths, set to ignore

Then under advanced -> bootstrap/meta data, set to Display. And then select as Data source “D”, select text (if it is not already selected) and increase the font size to something readable.

Exercise: Compare this output to your own answer when manually re

Solution

±Same

Exception is the root node, which is not a duplication?

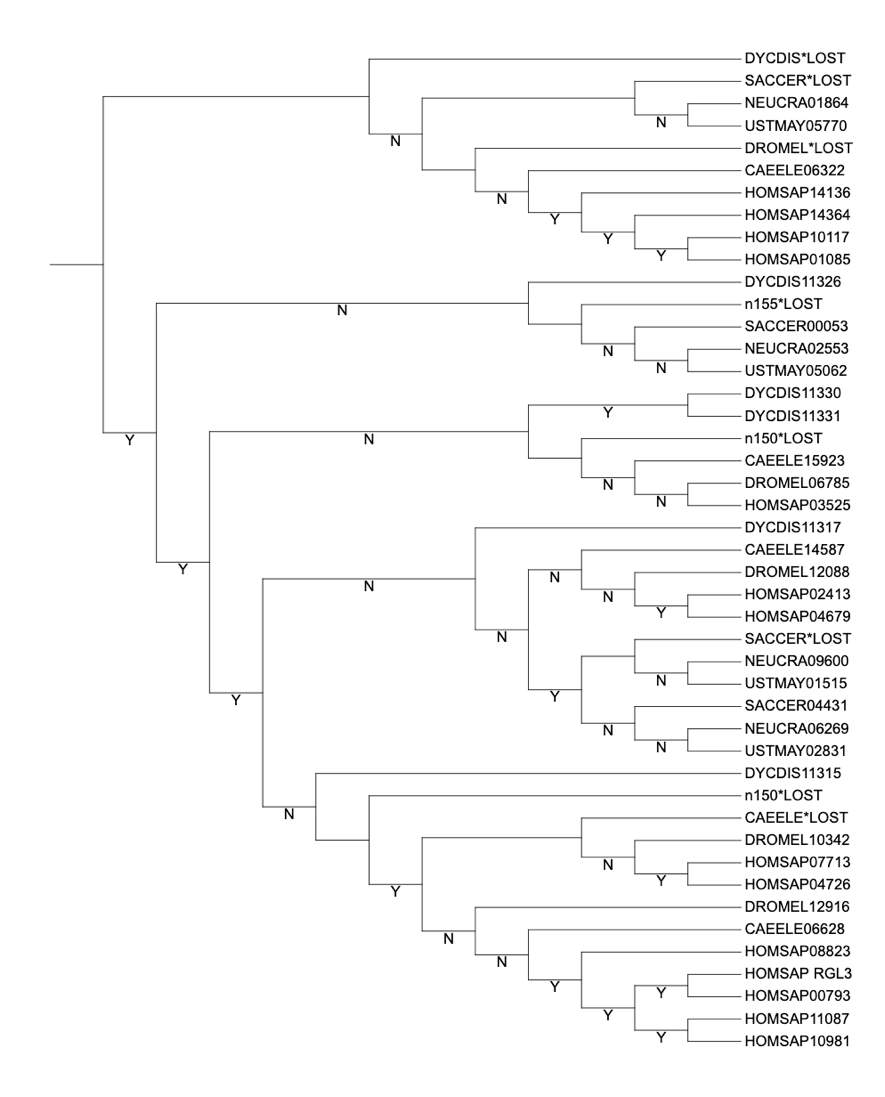

Als inspect the file RasGefGeneTree.nwk.reconciled.events.txt,

Exercise: How can you see how this file summarizes the entire dynamics of this gene family for you? What limits the intepretability?

Solution

Yes it contains per branch all the events, but you need to know what the node id’s are. NB perhaps you make it more human readable by adding node-id’s yourself to the species tree …

We want to do the automatic reconciliation also strict for the fully resolved tree. However NOTUNG then does not run because it does not want to overwrite the output files. Move your output files to another name, so you keep them but they are not in the way for NOTUNG. You can do that in using the mv command e.g. mv RasGefGeneTree.nwk.reconciled RasGefGeneTree.nwk.reconciled.bkp.

Now run NOTUNG as above but use a different fully resolved species tree: speciestree_rasgef.nwk. Also look at these results and compare them to the result from using an unresolved species tree.

Exercise: what is the difference between notung with a fully resolved species tree and with an unresolved species tree?

Solution

Many more losses and some more duplications; see below; and especially losses and duplications created by spurious duplications where the species tree is not exactly followed …

In the lectures we also discussed that the another strength of NOTUNG is to use support values to inform its decision on which parts of the tree to believe and which not. So let us also run this on our tree and see what NOTUNG makes of it. Use it as follows: java -jar ~/data_bb3bcg20/bin/Notung-2.9.1.5.jar RasGefGeneTree2.nwk -s speciestree_rasgef.nwk --rearrange --threshold 70 --edgeweights name --events

Where NB we use a gene tree 2 because that gene tree contains support values.

Exercise: Is the output same/different from using the unresolved species tree in terms of total number of events? Is the output the same/different in terms of the exact location of these events and in terms of the topology of the gene tree?

Solution

output same in terms of number of events
output different in terms of exact location of these events

Key Points

• strict tree reconciliation is very errorprone and other solutions exist with gene trees (that are generally imperfect)
